Description

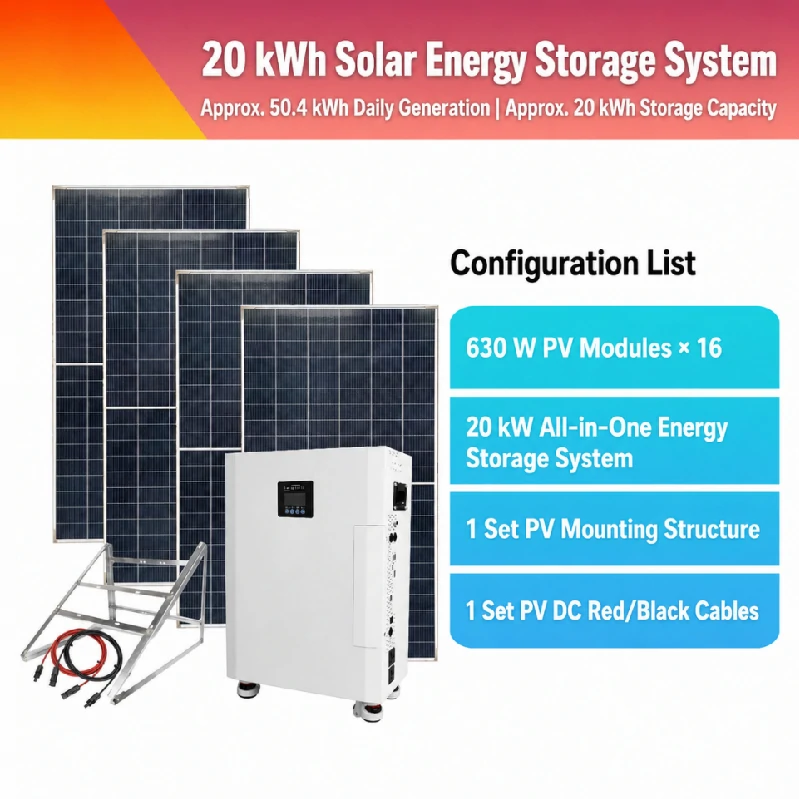

The RI-Solar-20kW all-in-one energy storage system integrates an LFP battery, high-frequency inverter, MPPT controller, and intelligent management system. No separate inverter or controller is required, simplifying installation while providing a complete energy-storage solution.
Intelligent, User-Friendly Control: A high-definition LCD displays PV generation, stored energy, charge/discharge status, fault codes, output power, and other key operating data in real time. The system automatically switches between PV and utility sources, selects the optimal charging source, and matches power delivery to load demand. Remote communications support data access, condition monitoring, and software updates for convenient day-to-day operation.
Applications: For homes, the system maximizes solar self-consumption, reduces grid dependence, uses time-of-use pricing to lower monthly electricity costs, and provides backup power for refrigeration, lighting, security, and smart-home loads. For field work, it supplies clean, quiet power for exploration, construction, commissioning, and maintenance without the fuel use and emissions of conventional generators. It also supports mobile retail, events, food service, refrigeration, audio, and livestream equipment with stable 220 V AC output. In remote villages, farms, breeding facilities, and camps, the system can form an independent off-grid supply for reliable 24-hour power with simple maintenance and low long-term operating costs.
| Parameter | Specification |
| Rated Power | 20 kW |
| Typical Battery Energy | 30 ~ 40 kWh |
| Battery Type | Lithium iron phosphate (LiFePO₄) |
| System Voltage | 48V / 51.2V |
| AC Voltage | 400 Vac three-phase / 230 Vac single-phase (optional) |
| MPPT Voltage Range | 200 ~ 850Vdc |
| Protection Rating | IP20 to IP54 (optional) |
| Cooling Method | Air cooling |
| Dimensions (Reference) | Approx. 600 × 600 × 1,750 mm |
| System Weight (Reference) | Approx. 480-500 kg |
| Cycle Life | >=6,000 cycles at 80% DOD |
| Communication Interfaces | RS485 / CAN / WiFi |
| Component | 630w/16pcs |
| Mounting Rack | Custom / 1 set |
| Operating Modes | Grid-connected / Off-grid / Peak shaving / Emergency backup |
| Applications | Small commercial and industrial sites, residential storage, backup power |

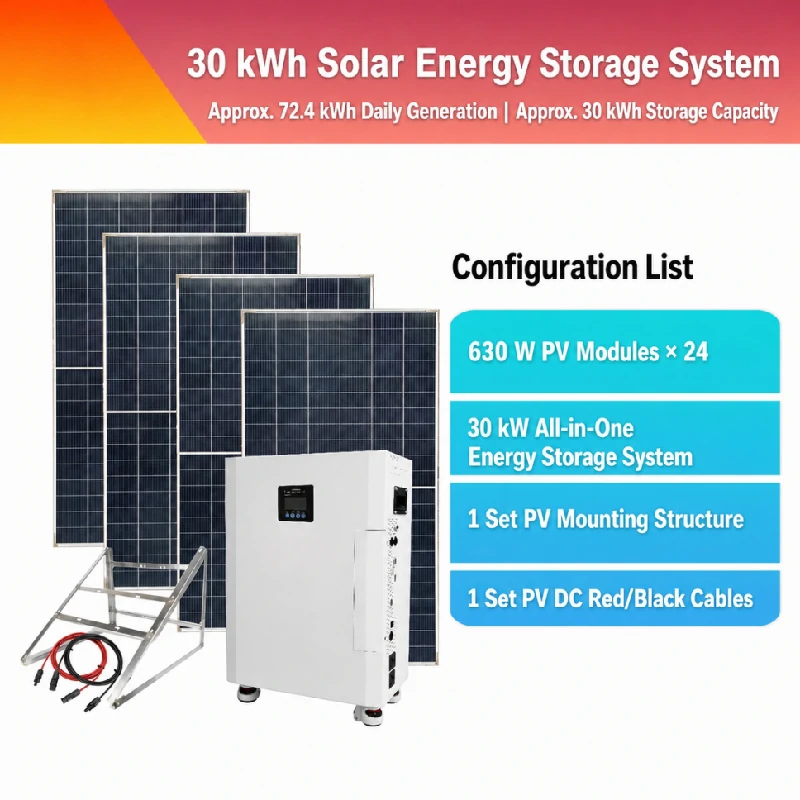

The RI-Solar-30kW solar-storage-diesel system integrates an LFP battery, high-frequency inverter, MPPT controller, generator interface, and intelligent management system. The diesel generator operates only as backup when battery energy is insufficient, improving fuel economy while reducing noise and emissions.
Technical Design: The RI-Solar-30kW uses DC-coupled solar and storage on an integrated DC bus, enabling efficient coordination and fast system response.
Comprehensive monitoring covers battery state of health (SOH), state of charge (SOC), BMS and PCS status, fault information, generator operating condition, and fuel efficiency to support reliable system operation.
Cost-Optimized Operation: In grid-connected mode, intelligent charge and discharge scheduling uses time-of-use electricity pricing. Optional demand control, dynamic capacity expansion, and reverse-power prevention can further improve operating economics.
Coordinated Control: Automatic generator control provides fast, safe response during grid-connected and off-grid transitions. Solar and storage are continuously optimized, while intelligent diesel power allocation minimizes fuel consumption and keeps the generator primarily in standby, reducing overall operating costs.
Applications
The RI-Solar-30kW is designed for remote islands, ranches, and weak-grid regions, including projects across Southeast Asia and Africa.
| Parameter | Specification |
| Rated Power | 30 kW |
| Typical Battery Energy | 30~ 60 kWh |
| Battery Type | Lithium iron phosphate (commercial and industrial grade cells) |
| MPPT Power | 38 kW (2 channels) |
| MPPT Voltage Range | 200 ~ 800Vdc |
| AC Voltage | 400Vac / 230Vac |
| Protection Rating | IP54 (high-protection outdoor design) |
| Cooling Method | Air cooling |
| Parallel Expansion | Supports up to 3 units in parallel |
| Generator Interface | Supported |
| Dimensions (Reference) | Approx. 670 × 900 × 1,560 mm |
| System Weight (Reference) | Approx. 750 kg |
| Cycle Life | >=6,000 cycles at 80% DOD |
| Communication Interfaces | RS485 / CAN / Ethernet |
| Component | 630W/24PCS |
| Mounting Rack | Custom / 1 set |
| Operating Modes | Grid-connected / Off-grid / Microgrid / Peak shaving / Emergency backup |
| Applications | Small and medium commercial and industrial sites, microgrids, off-grid PV projects |
| Safety Certifications | CE / UL / IEC / UN38.3 / RoHS |

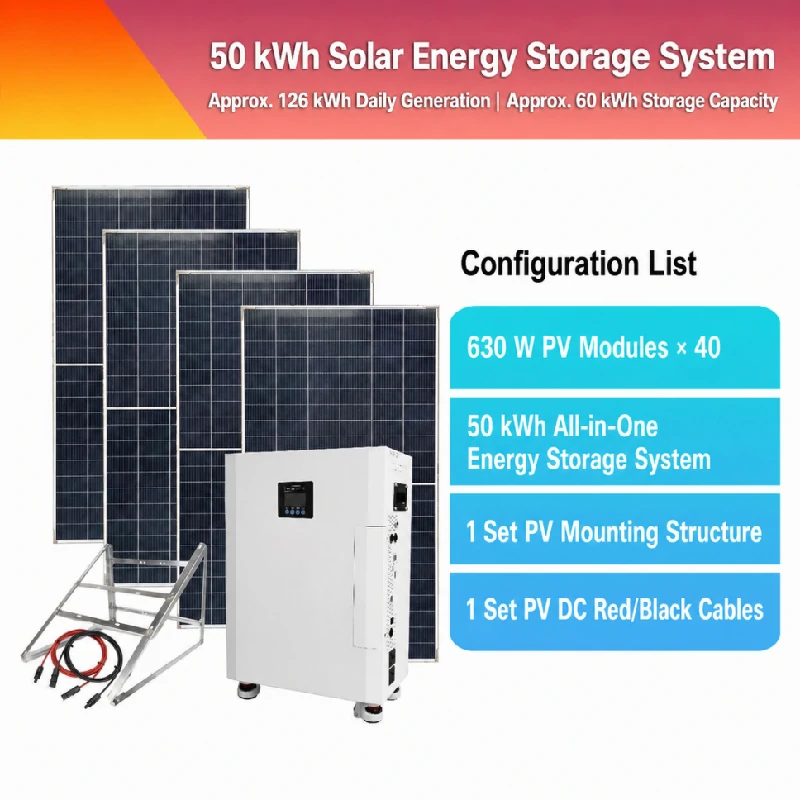

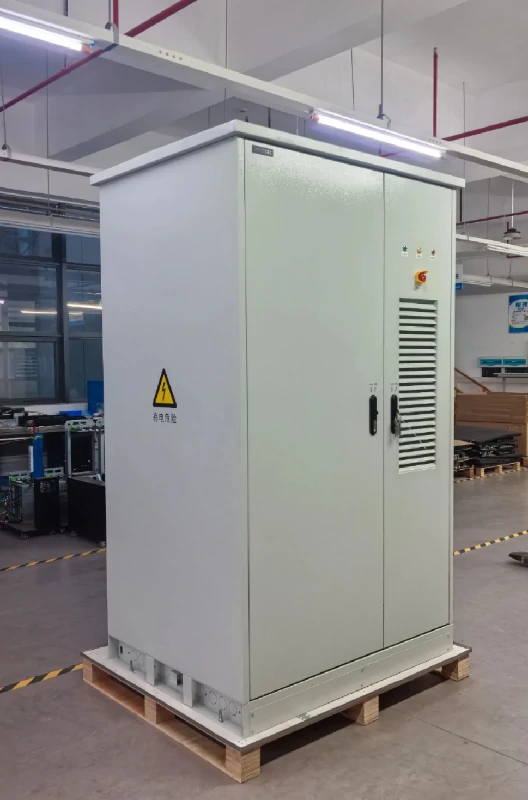

The RI-Solar-50kW solar-storage-diesel system integrates an LFP battery, high-frequency inverter, MPPT controller, generator interface, and intelligent management system. The diesel generator operates only as backup when battery energy is insufficient, improving fuel economy while reducing noise and emissions.
Technical Design: The RI-Solar-50kW uses DC-coupled solar and storage on an integrated DC bus, enabling efficient coordination and fast system response.
Comprehensive monitoring covers battery state of health (SOH), state of charge (SOC), BMS and PCS status, fault information, generator operating condition, and fuel efficiency to support reliable system operation.
Cost-Optimized Operation: In grid-connected mode, intelligent charge and discharge scheduling uses time-of-use pricing. Demand control, dynamic capacity expansion, and reverse-power prevention help maximize system economics.
Coordinated Control: Automatic generator control provides fast, safe response during grid-connected and off-grid transitions. Solar and storage are continuously optimized, while intelligent diesel power allocation minimizes fuel consumption and keeps the generator primarily in standby, reducing overall operating costs.
Applications
The RI-Solar-50kW is designed for remote islands, ranches, and weak-grid regions, including projects across Southeast Asia and Africa.
| Parameter | Specification |
| Rated Power | 50 kW |
| Typical Battery Energy | 100 ~ 115 kWh |
| Rated Voltage | 512V |
| Voltage Range | 448V ~ 578V |
| Battery Type | Lithium iron phosphate (LFP) |
| Number of MPPTs | 3 channels |
| MPPT Voltage Range | 300V ~ 750V |
| AC Voltage | 400 V, three-phase five-wire |
| Maximum Efficiency | 97.5% |
| Protection Rating | IP55 |
| Cooling Method | Intelligent air cooling / Air conditioning |
| Parallel Expansion | Up to 10 units in parallel (up to 500 kW / 1 MWh) |
| Dimensions (Reference) | Approx. 1,100 × 1,080 × 2,380 mm |
| System Weight (Reference) | Approx. 1.5 t |
| Operating Temperature Range | -30℃ ~ +50℃ |
| Maximum Operating Altitude | 4,000 m (derating above 3,000 m) |
| Depth of Discharge | 100% DOD |
| Communication Interfaces | Ethernet / CAN / RS485 |
| Component | 40pcs |
| Mounting Rack | Custom / 1 set |
| Operating Modes | Grid-connected / Off-grid / Microgrid / Peak shaving / Emergency backup |
| Applications | Medium and large commercial and industrial sites, factory peak shaving, small microgrids, backup power |
