Description

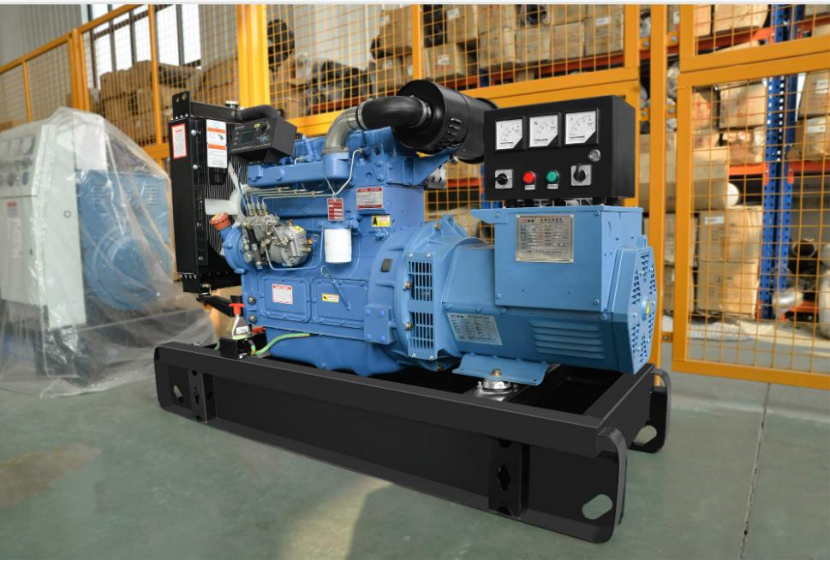

Product image shown for reference only. Actual configuration and appearance are subject to the specifications confirmed by our sales team.
Available Options:
- Base fuel tank 2. Jacket-water heater 3. Oil heater 4. Soundproof enclosure 5. Trailer-mounted configuration 6. Automatic control
A compact 15 kW standby diesel generator set for homes, shops, hotels, and other light commercial applications. It features a four-stroke, four-cylinder engine, a copper-wound brushless alternator, low-maintenance operation, and 380 V three-phase output for dependable emergency power.
| No. | Parameter | Specification |
| 1. Generator Set Specifications | ||
| 1 | Generator Set Model | HQ15GF |
| 2 | Output Power | 15kW |
| 3 | Power Factor | cos φ = 0.8 (lagging) |
| 4 | Output Voltage | 400V/230V |
| 5 | Output Current | 28A |
| 6 | Rated Frequency | 50Hz |
| 7 | Rated Speed | 1500rpm |
| 8 | Fuel Grade | Standard No. 0 light diesel fuel for ambient-temperature operation |
| 9 | Dimensions | 1700×700×1300（L×W×H mm）(Reference Only) |
| 10 | Generator Set Weight | 650kg (Reference Only) |
| 11 | Steady-State Voltage Regulation (%) | ≤±1 |
| 12 | Voltage Fluctuation (%) | ≤±0.5 |
| 13 | Transient Voltage Regulation (%) | ＋20～－15 |
| 14 | Voltage Recovery Time (s) | ≤1 |
| 15 | Steady-State Frequency Regulation (%) | ≤±1 |
| 16 | Frequency Fluctuation (%) | ≤±0.5 |
| 17 | Transient Frequency Regulation (%) | ＋10～－7 |
| 18 | Frequency Recovery Time (s) | ≤3 |
| 19 | Fuel Consumption at 100% Load | 222g/kW·h |
| 20 | Noise Level at 7 m | 105dB（A） |
| 2. Diesel Engine Specifications | ||
| 1 | Brand / Origin | WF / Weifang, China |
| 2 | Diesel Engine Model | HQD-15L / ZH495D |
| 3 | Diesel Engine Rated Power | 28kW |
| 4 | Displacement | ≈3.0L |
| 5 | Cylinders / Arrangement | 4 / In-line |
| 6 | Bore × Stroke | 95×105mm (Reference Only) |
| 7 | Compression Ratio | 17:1 |
| 8 | Starting Method | DC12V Electric Starting |
| 9 | Cooling System | Pressurized closed-loop water cooling |
| 10 | Fuel System | Direct injection |
| 11 | Diesel Engine Standby Power | / |
| 12 | Lubricating Oil Capacity | 7L (Reference Only) |
| 13 | Governing System | Mechanical governing |
| 14 | Air Intake System | Naturally aspirated |
| 15 | Overload Capacity | 110% |
| 16 | Speed | 1500rpm |
| 3. Alternator Specifications | ||
| 1 | Brand / Origin | RISUO / China |
| 2 | Alternator Model | HQF-15 |
| 3 | Rated Power | 15kW |
| 4 | Rated Voltage | 400V/230V |
| 5 | Insulation Class | Class H |
| 6 | Protection Rating (IP Code) | IP23 |
| 7 | Connection | Three-phase, four-wire (3P4W) |
| 8 | Voltage Regulation | Automatic voltage regulator (AVR) |
| 9 | Output Frequency | 50Hz |
| 10 | Output Power Factor | cos φ = 0.8 (lagging) |
